Skin-Thermometer ST 500

• The Measuring Principle

  The measurement is based on relative infrared temperature measurement.



• Advantages of the Skin-Thermometer

  • It allows very quick measurements (1 s).
  • Continuous measurements over a longer time period can optionally be performed.
  • The probe is small and lightweight for easy handling and measurement on all body sites.
  • The touchless measurement ensures no influences on the skin's micro circulation.
  • Ideal for comparison measurements on different body sites.
  • The probe head can easily be cleaned after each measurement.



• Fields of Application

  The probe finds its field of application everywhere where differences in the skin temperature and the skin microcirculation are of interest.

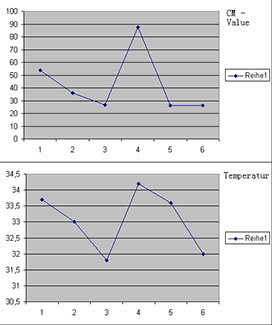

  • Ideal accompanying measurement  for other parameters. E.g. skin hydration is very different with different skin temperature.
  • It is a valuable tool for efficacy testing and claim support for cosmetics and pharmaceuticals (e.g. microcirculation enhancing products, anti-cellulite products).
  • In dermatology and occupational medicine it gives information for basic research.







• Technical Data

  Probe only:

  Dimensions: 13 cm

  Cable length: approx. 1.3 m

  Measuring surface: Ø 2.4 cm

  Weight: 85 g incl. cable



  Measurement principle: infrared

  Resolution: 0.1°C

  Range: 22-40° C

  Measurement uncertainty for absolute temperature measurements: ± 0.8° C

  Repeatability of temperature measurements: ± 0.15 K (3σ)

  Measurement uncertainty of temperature differences: ± 0.21 K (3σ)



  For the dimensions, etc. of the wireless probes, please see the technical data of the basic devices.



  Technical changes may be made without prior notice.
