Laser Diffraction System for single fibre dimensional and single fibre tensile

Feature / Specification:

• Design for direct, non-contact diameter of single small and opaque fibre.
• Allow single fibre diameter measurements as small as 4μm.
• The system is calibrated linearization, temperature compensated and insensitive to vibrations due to high speed scanning.
• Measurement range: 5 - 100μm
• Diameter resolution: 0.01μm
• Diameter repeatability: +/- 0.03% of the diameter
• Specimen gauge length: 4, 12, 20 or 30mm
• Computerized system with UvWin software on Windows 10 & 11.
• Analysis tools include 1 phase, 3 phase, Weibull, Hysteresis, Stress Relaxation.

Application:

• Single carbon fibre / filament diameter and tensile testing.
• Diameter measurement of ultra-fine wires.

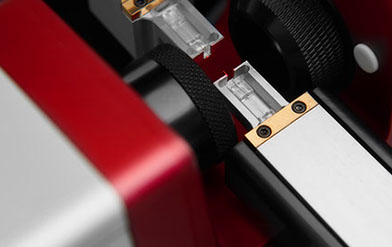

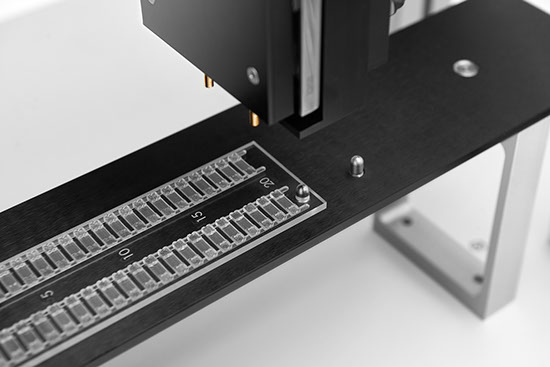

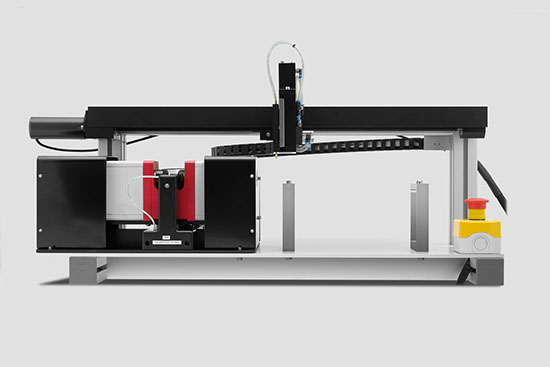

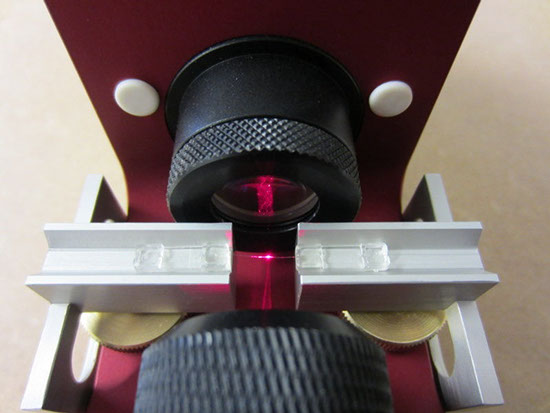

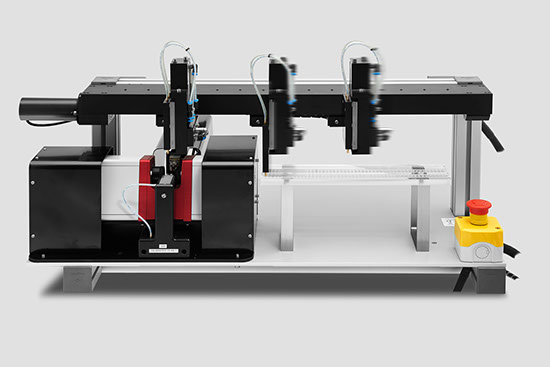

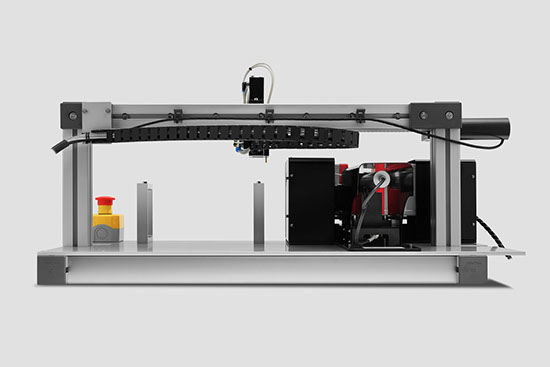

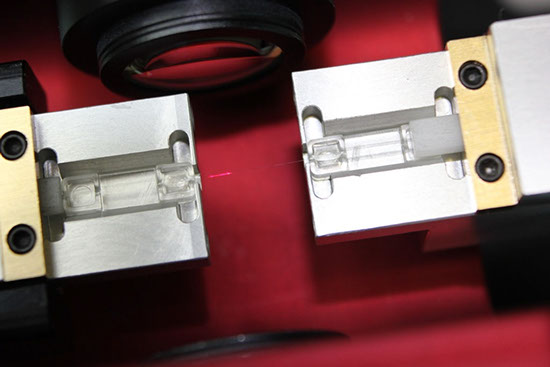

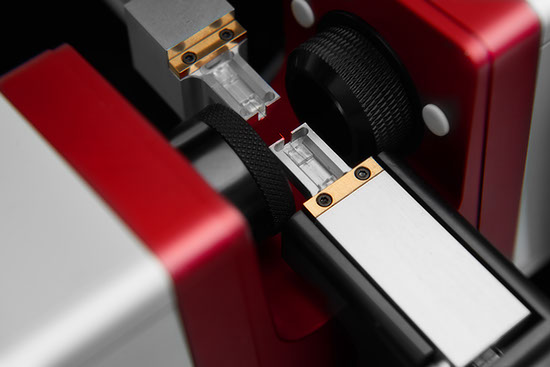

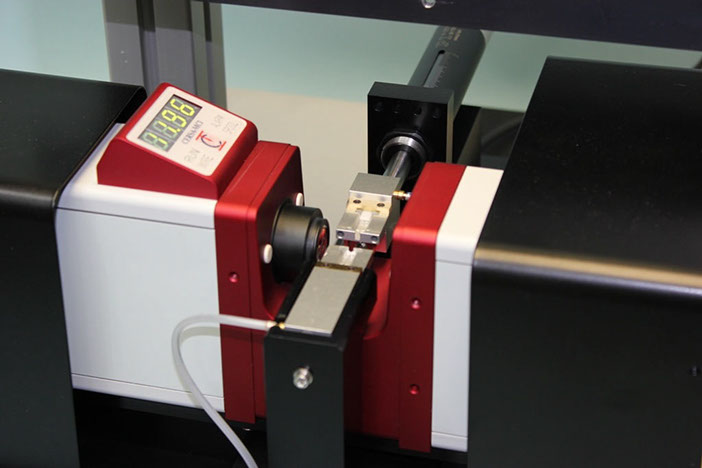

Photos:
